A36 Hot Rolled Steel Plate
Classification :
A36 Hot Rolled Steel Plate Description

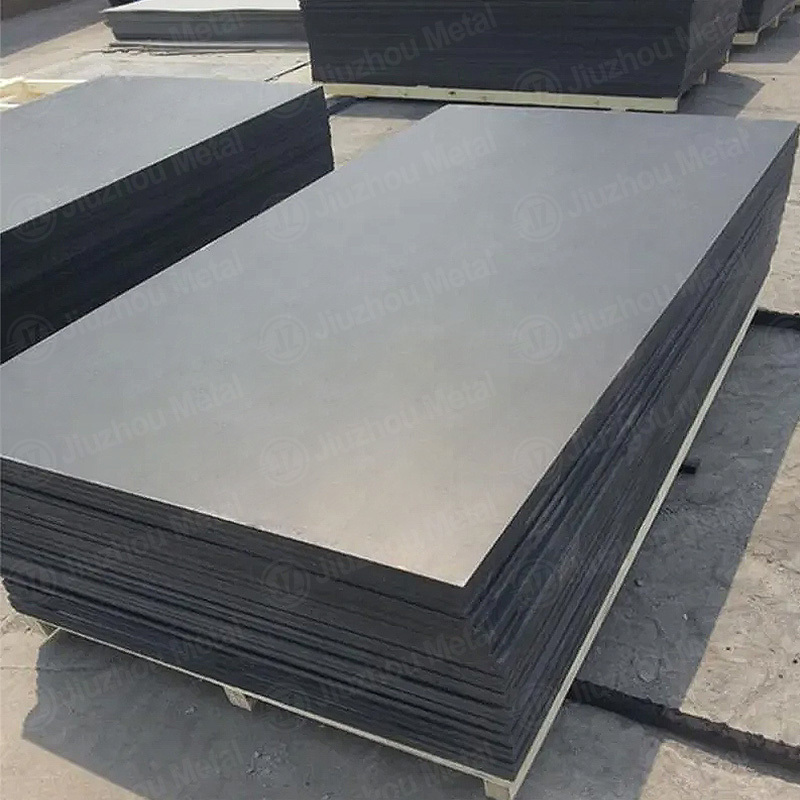

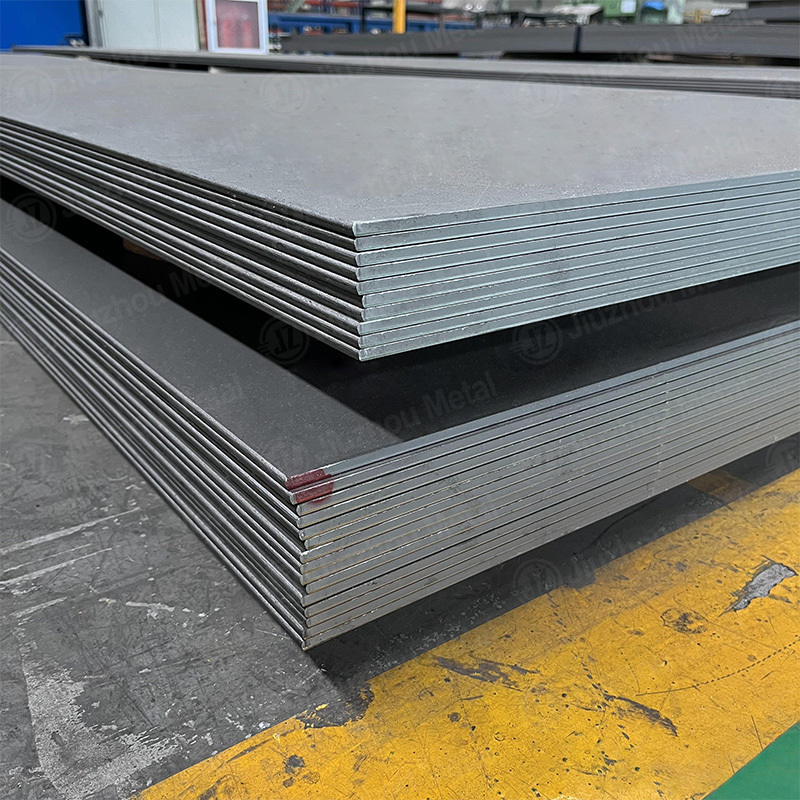

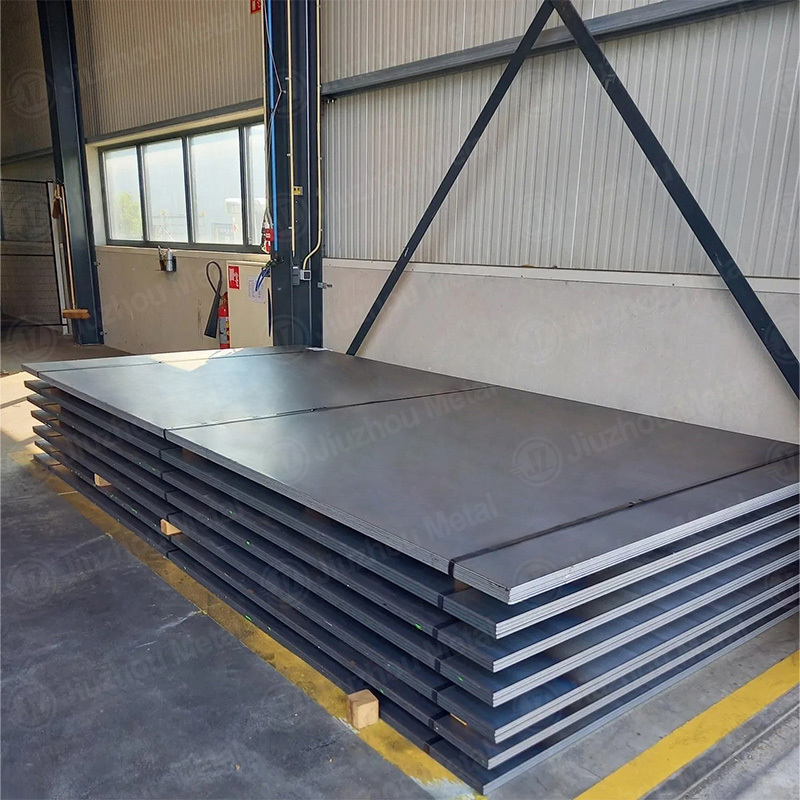

A36 hot rolled steel plates are an excellent candidate for most processing techniques. A36 hot rolled steel plates have a rough, blue-grey finish, dull rounded edges and have inexact dimensions throughout length. A36 material is a low carbon steel, often referred to as mild steel which is long lasting and durable. Common applications include base plates, brackets, gussets and trailer fabrication. ASTM A36 / A36M-08 is the standard specification for carbon structural steel.
Product Parameters
Product Name | A36 Hot Rolled Steel Plate |
Production Process | Hot Rolling |
Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
Width | 100mm-3000mm |
Length | 1m-12m, or Customized Size |
Thickness | 0.1mm-400mm |
Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
| Element | Percentage |
| C | 0.26 |
| Cu | 0.2 |
| Fe | 99 |
| Mn | 0.75 |
| P | 0.04 max |
| S | 0.05 max |
Mechanical Properties
| Imperial | Metric | |
| Density | 0.282 lb/in3 | 7.8 g/cc |
| Ultimate Tensile Strength | 58,000 psi | 400 MPa |
| Yield Tensile Strength | 47,700 psi | 315 MPa |
| Shear Strength | 43,500 psi | 300 MPa |
| Melting Point | 2,590 - 2,670 °F | 1,420 - 1,460 °C |
Scope of Application
● Trailers
● Walkways
● Ramps
● Structural supports
● General fabrication
APPLICATION FIELD
Bridge
Oil pipeline
Chemical industry
Steel structure
