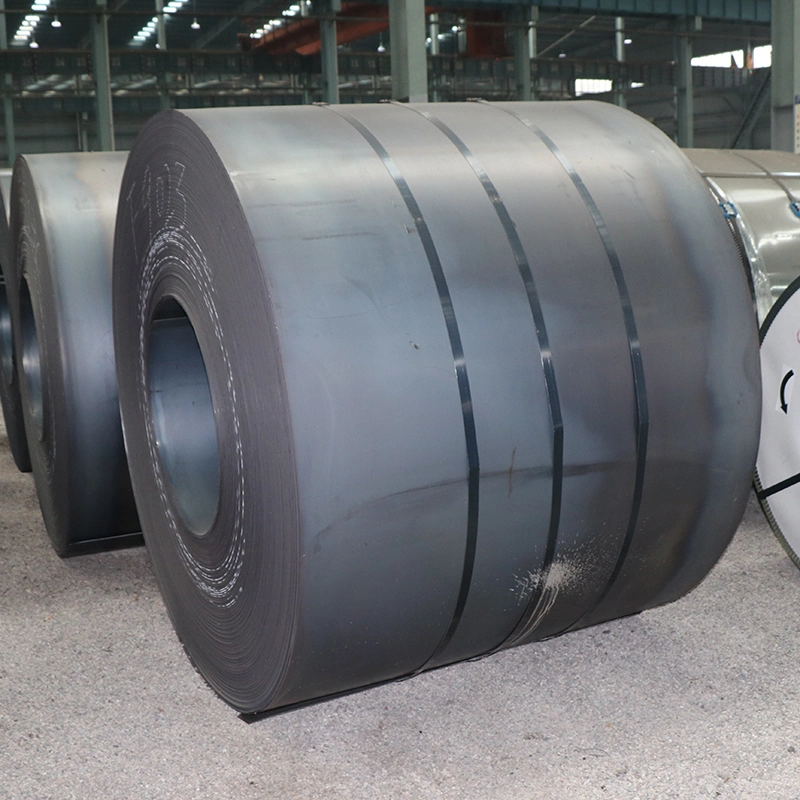

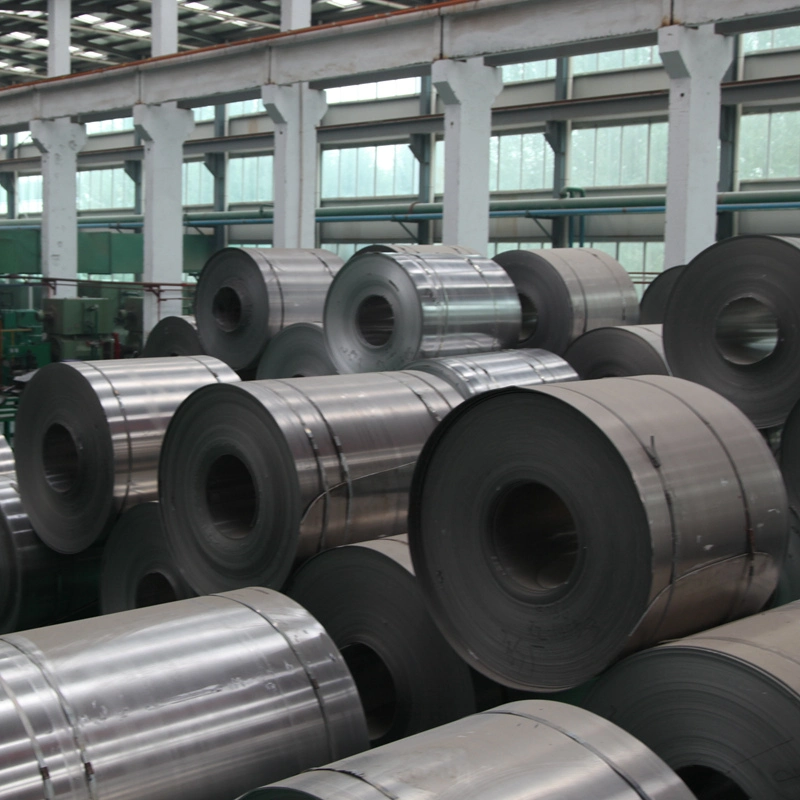

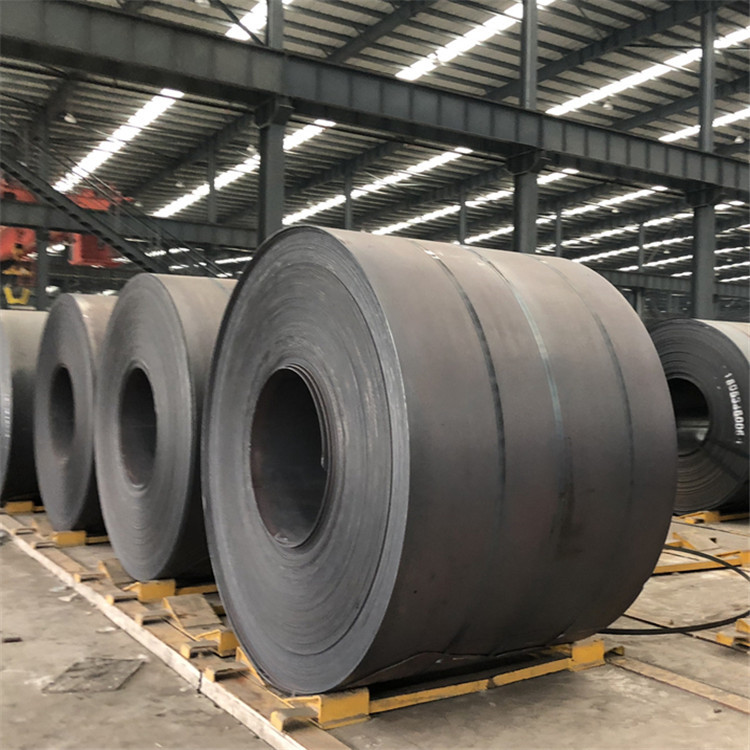

SPHC Steel Coil
Category :
SPHC Steel Coil Description
SPHC is manufactured through a process known as hot rolling, where steel is passed through rollers at high temperatures to form sheets or strips. This helps improve its physical properties such as strength, durability, and ductility.
Product Parameters
Product Name | SPHC Steel Coil |
Production Process | Hot Rolling |
Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
Width | 800mm-1600mm |
Length | 1m-1200m, or Customized Size |
Thickness | 0.1mm-4mm |
Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
| Element | Percentage |
| C | 0.26 |
| Cu | 0.2 |
| Fe | 99 |
| Mn | 0.75 |
| P | 0.04 max |
| S | 0.05 max |
Mechanical Properties
| Imperial | Metric | |
| Density | 0.282 lb/in3 | 7.8 g/cc |
| Ultimate Tensile Strength | 58,000 psi | 400 MPa |
| Yield Tensile Strength | 47,700 psi | 315 MPa |
| Shear Strength | 43,500 psi | 300 MPa |
| Melting Point | 2,590 - 2,670 °F | 1,420 - 1,460 °C |
Scope of Application
● Trailers
● Walkways
● Ramps
● Structural supports
● General fabrication
Application Field
Bridge
Oil pipeline
Chemical industry
Steel structure
